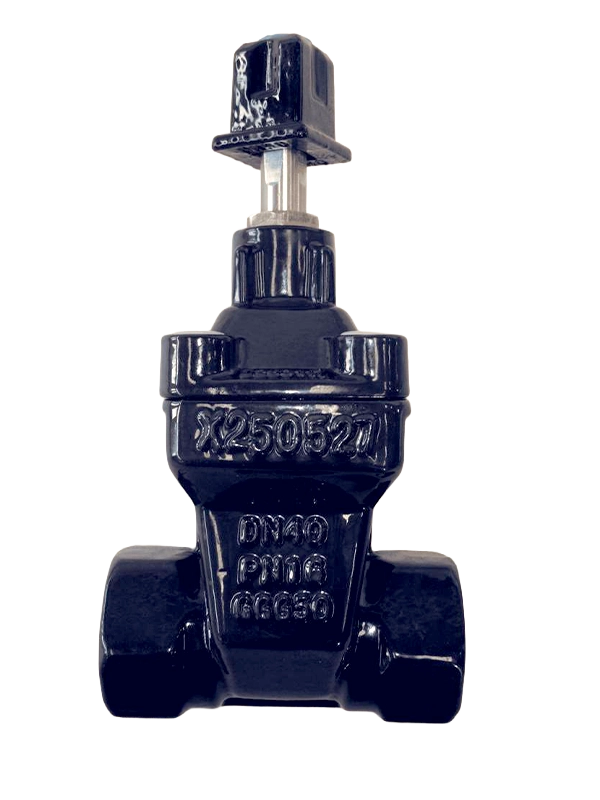

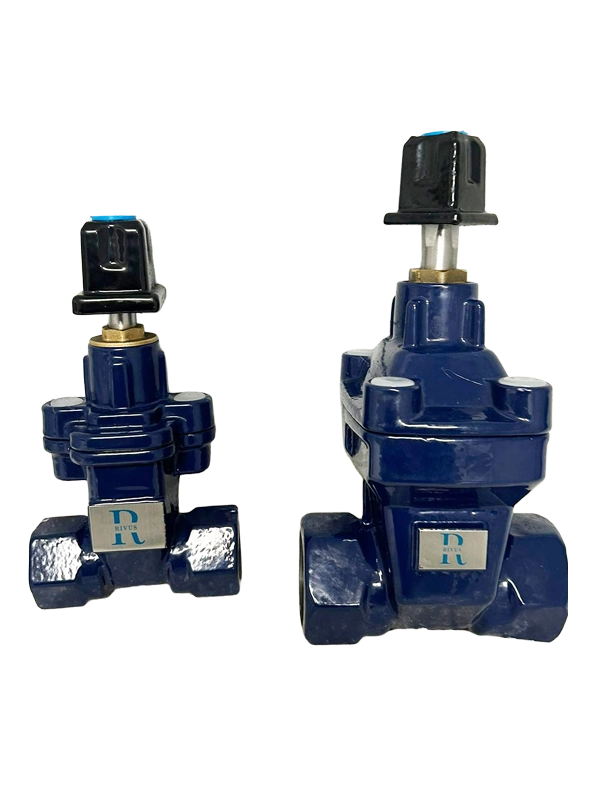

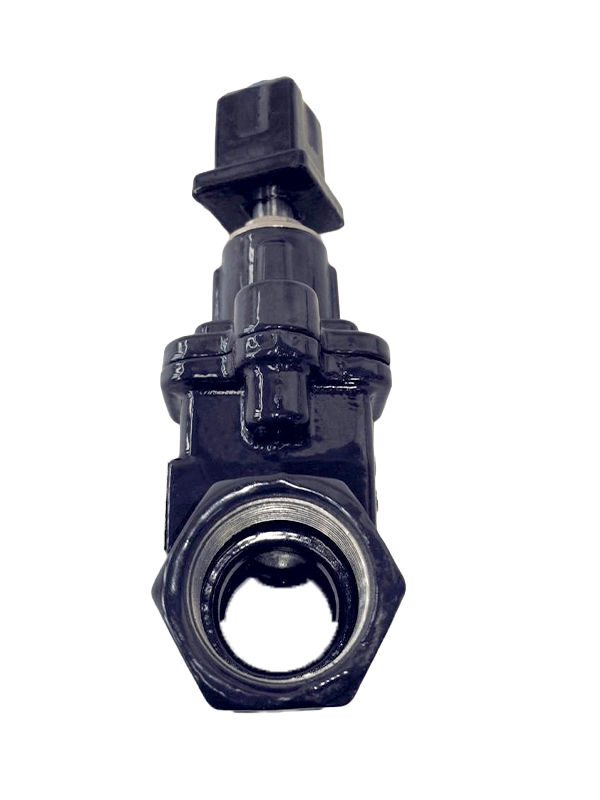

Service connection valve
| Diameter | 25, 32, 40, 50 |
|---|
Product description:
- Service connection valve with internal thread. For drinking water and neutral liquids to max. 70°C
Standards:
- Designed according to EN 1074 part 1 & 2, Designed according to EN 1171
Test/Approvals:
- Hydraulic test according to EN 1074-1 and 2 / EN 12266
- Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test
- Belgaqua approved
- Approved according to ACS Certificate 18 ACC NY 369
- Approved according to Swedish type approval 1350 certified by KIWA
FEATURES
- Wedge of brass CW626N vulcanized with EPDM rubber – both brass and rubber certified for use in contact with drinking
water– and shaped with guides and a special rubber profile ensuring low closing torques - Stainless steel stem with rolled threads providing high strength
- Full circle thrust collar provides fixation of the stem and low free running torques
- Triple safety stem sealing with an NBR wiper ring, a polyamide bearing with four NBR O-rings and an EPDM rubber
manchette - EPDM bonnet gasket fixed in a recess
- Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
- Full bore
- Low operating torque
- Fusion bonded epoxy coating in compliance with DIN 3476 part 1 and EN 14901, GSK approved
